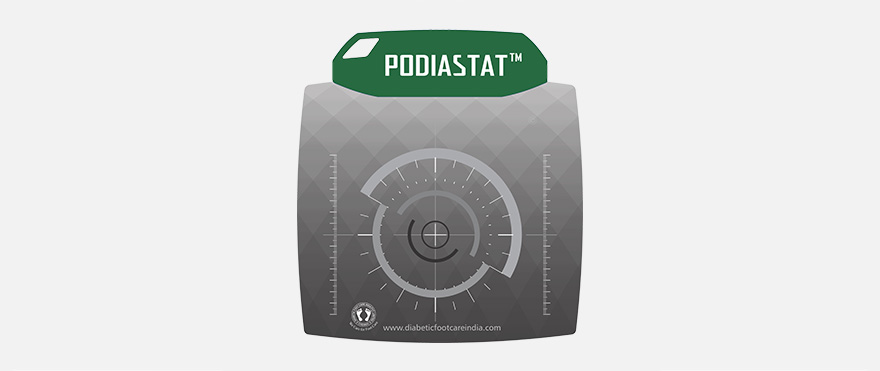

Electronic Sensor Foot Pressure Mapping System – Item Code: PODIASTAT

Electronic Sensor Foot Pressure Mapping System – Item Code: PODIASTAT

Podiastat is the most accurate, simple, slim, portable and cost effective with improved features and output.

The foot pressure sensor plate Podiastat records and evaluates pressure distribution under the foot in static(weight-bearing), dynamic(walking) and postural imbalance conditions. This tool is for the early recognition of altered pressure patterns in the individuals with diabetes. It was documented that during walking the neuropathic patients exhibit a slap gait. Information derived are important in gait posture research for diagnosing lower limb problems, footwear designs, sports biomechanics, injury prevention and other applications.


  • Measure static, dynamic, multi dynamic and postural pressure mapping
  • Bi-directional walking facility
  • Sensor size of 8 x 8 mm
  • 400mm x 400mm sensing area
  • 1600 sensors with Sampling rate 100Hz
  • Maximum of 200kg patient load
  • Maximum Pressure 100N/cm2
  • Weighs 3.15 kg
  • Dimension of 565mm(L) x 612(D) x 22mm – 7mm(H)
  • Thickness of platform 7mm or less
  • Displays area, Maximum Pressure curves
  • Displays each frame in rollover process (ROP)
  • Displays maximum pressure picture (MPP)
  • Displays of % of distribution of pressure
  • Force value graph display for both foot
  • Prints screen copy
  • Prints 1:1 actual size
  • Displays centre of pressure (COP) line
  • Connects to PC through USB for data transfer and power
  • Software compatible to any Windows Computer
  • Displays 60 frames of mosaic for one measurement
  • 2D and 3D pressure display
  • Provision to connect a video camera
  • Video walking synchronized with pressure roll over is available
  • Comparison of videos of patients walking
  • Comparison of reports of same patient or with multi-patients
  • Export of data available
  • Facility for data backup and retrieval
  • PDF printing facility
